15.1 Introduction

Sterile pharmaceutical manufacturing represents the highest level of contamination control within the pharmaceutical industry. Unlike Oral Solid Dosage (OSD) manufacturing, where contamination is primarily controlled through engineering measures and cleaning, sterile manufacturing requires complete prevention of microbial, particulate, and pyrogen contamination throughout the manufacturing process.

Every cubicle in a sterile manufacturing facility must be designed, classified, qualified, and monitored according to its intended use and contamination risk. The facility design should follow the principles of Quality Risk Management (ICH Q9) and be supported by a comprehensive Contamination Control Strategy (CCS) as described in EU GMP Annex 1.

Typical sterile products include:

• Small Volume Parenterals (SVPs)
• Large Volume Parenterals (LVPs)
• Lyophilized injectables
• Ophthalmic solutions
• Sterile powders for injection
• Vaccines
• Biopharmaceutical injectables

This chapter provides a detailed guide to the classification of sterile manufacturing cubicles, including environmental requirements, pressure cascades, HVAC systems, cleanroom grades, and qualification expectations.

15.2 Objectives of Sterile Cubicle Classification

The objectives are to:

• Prevent microbial contamination.
• Prevent particulate contamination.
• Protect sterile products.
• Maintain aseptic conditions.
• Support validated aseptic processes.
• Protect operators and the environment.
• Ensure compliance with global GMP requirements.
• Facilitate qualification and environmental monitoring.

15.3 Regulatory Requirements

Sterile manufacturing facilities should comply with:

15.4 Typical Sterile Manufacturing Process

Raw Materials
      │
      ▼
Component Washing
      │
      ▼
Component Sterilization
      │
      ▼
Solution Preparation
      │
      ▼
Sterile Filtration
      │
      ▼
Aseptic Filling
      │
      ▼
Stoppering
      │
      ▼
Capping
      │
      ▼
Visual Inspection
      │
      ▼
Packaging
      │
      ▼
Finished Goods

The process should maintain product sterility throughout all critical operations.

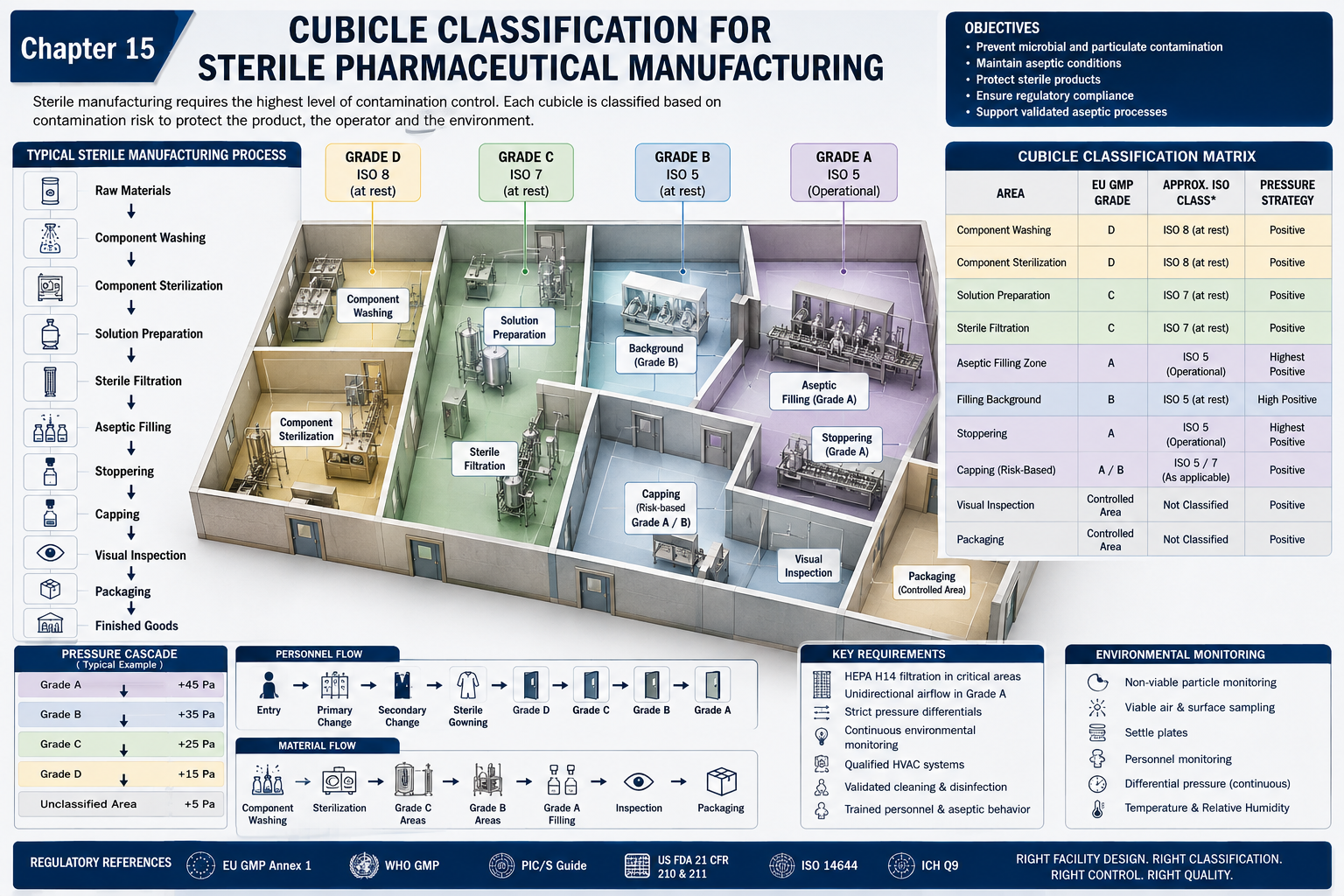

15.5 Sterile Cubicle Classification Matrix

equivalence ISO classifications depend on operational state and applicable guidance.

15.6 Component Washing Cubicle

Purpose

Cleaning:

• Vials
• Ampoules
• Rubber stoppers
• Aluminum seals
• Product-contact components

Typical Equipment

• Vial Washer
• Ultrasonic Washer
• Component Washer

Design Features

• Grade D environment
• Smooth cleanable finishes
• Controlled drainage
• Segregation of dirty and clean components

15.7 Sterilization Area

Purpose:

Sterilization of cleaned components.

Equipment

• Autoclaves
• Dry Heat Sterilizers
• Depyrogenation Tunnels

Design Requirements

• Clean side / dirty side segregation
• Pass-through sterilizers
• Interlocked doors
• Pressure monitoring

15.8 Solution Preparation Cubicle

Purpose:

Preparation of sterile solutions before filtration.

Typical Grade

Grade C

Equipment

• Mixing vessels
• Agitators
• Transfer pumps

Environmental Controls

• HEPA-filtered supply air
• Positive pressure
• Temperature control
• Relative humidity control

15.9 Sterile Filtration Cubicle

Purpose:

Removal of microorganisms before filling.

Equipment

• Sterilizing-grade membrane filters
• Transfer pumps
• Pressure gauges

Design Features

• Grade C
• Controlled environment
• Validated filtration process
• Product protection

15.10 Aseptic Filling Cubicle

This is the most critical manufacturing area.

Cleanroom Grade

Grade A

Background

Grade B

Typical Equipment

• Filling machine
• Isolator or RABS (where applicable)
• Laminar airflow/UDAF system
• Environmental monitoring equipment

Engineering Requirements

• HEPA H14 filters
• Unidirectional airflow
• Continuous particle monitoring
• Pressure cascade
• Restricted access

15.11 Stoppering Cubicle

Stoppering protects the sterile product immediately after filling.

Requirements

• Grade A
• Continuous unidirectional airflow
• Minimal operator intervention
• Automatic stoppering preferred where feasible

15.12 Capping Cubicle

Purpose:

Application of aluminum caps or seals.

Typical Classification

The required environmental classification depends on whether container closure integrity is already established and the associated contamination risk. Classification should be justified through risk assessment.

Controls

• Controlled environment
• Product protection
• Visual verification
• Line clearance

15.13 Visual Inspection Cubicle

Purpose:

Inspection of filled containers for:

• Particulates
• Cracks
• Fill volume
• Cosmetic defects

Requirements

• Controlled lighting
• Ergonomic workstations
• Controlled environment
• Qualified inspection process

15.14 Packaging Cubicle

Packaging protects sterile products after filling and inspection.

Operations

• Cartoning
• Labeling
• Serialization
• Case packing

Packaging operations should maintain product identification and prevent mix-ups.

15.15 HVAC Requirements

Sterile manufacturing HVAC systems are among the most sophisticated in the pharmaceutical industry.

Requirements

15.16 Pressure Cascade

Typical sterile pressure cascade:

Grade A
   +45 Pa
      │
Grade B
   +35 Pa
      │
Grade C
   +25 Pa
      │
Grade D
   +15 Pa
      │
Unclassified Area
    +5 Pa

Actual pressure values should be established during HVAC design and qualification.

15.17 Personnel Flow

Entry
   │
Primary Change
   │
Secondary Change
   │
Sterile Gowning
   │
Grade D
   │
Grade C
   │
Grade B
   │
Grade A

Personnel movement should always proceed from lower to higher cleanliness classifications.

15.18 Material Flow

Component Washing
        │
Sterilization
        │
Grade C
        │
Grade B
        │
Grade A Filling
        │
Inspection
        │
Packaging

Material transfers should occur through qualified Material Airlocks (MALs), pass-through sterilizers, or validated pass boxes as appropriate.

15.19 Environmental Monitoring

Environmental monitoring should include:

Alert and action limits should be established based on room grade, process risk, and historical performance.

15.20 Qualification Requirements

Sterile cubicles should undergo:

• Design Qualification (DQ)
• Installation Qualification (IQ)
• Operational Qualification (OQ)
• Performance Qualification (PQ)

Additional qualification includes:

• HEPA filter integrity testing
• Airflow visualization (smoke studies)
• Air velocity testing
• Particle count classification
• Pressure mapping
• Temperature and humidity mapping
• Recovery testing

15.21 Aseptic Process Simulation (Media Fill)

Media fills verify the capability of the aseptic process.

Objectives include:

• Assessment of operator technique.
• Verification of aseptic process controls.
• Evaluation of contamination risks.
• Demonstration of process reproducibility.

Media fill programs should reflect routine manufacturing conditions and follow current regulatory guidance.

15.22 Common Inspection Observations

Inspectors frequently identify:

• Poor aseptic practices.
• Inadequate smoke study documentation.
• Incorrect airflow around critical zones.
• HEPA filter integrity failures.
• Pressure differential excursions.
• Inadequate environmental monitoring.
• Poor gowning discipline.
• Excessive interventions during filling.
• Incomplete contamination control strategy documentation.

15.23 Best Practices

• Base sterile facility design on Quality Risk Management (QRM).
• Implement a comprehensive Contamination Control Strategy (CCS).
• Use isolators or RABS where appropriate to reduce operator intervention.
• Validate all critical airflow patterns using smoke studies.
• Continuously monitor Grade A critical zones.
• Trend environmental monitoring results and investigate adverse trends.
• Perform periodic cleanroom requalification and personnel qualification.
• Maintain robust training in aseptic behavior and gowning.

15.24 Case Study – Sterile Injectable Facility

Product

Sterile Antibiotic Injection

Manufacturing Sequence

Component Washing
        │
Sterilization
        │
Solution Preparation
        │
Sterile Filtration
        │
Grade A Filling
        │
Stoppering
        │
Capping
        │
Inspection
        │
Packaging

Environmental Design

Benefits

• Controlled microbial environment.
• Reduced contamination risk.
• Robust aseptic process.
• Regulatory compliance.
• Consistent product quality.

15.25 Sterile Cubicle Audit Checklist

Chapter Summary

Sterile pharmaceutical manufacturing requires the highest standards of facility design, environmental control, and operational discipline. Every cubicle—from component washing to aseptic filling and packaging—must be classified according to its contamination risk and integrated into a comprehensive Contamination Control Strategy. Through appropriate cleanroom grading, HVAC design, pressure cascades, environmental monitoring, qualification, and personnel training, sterile manufacturing facilities can consistently produce safe, effective, and sterile medicinal products while meeting global regulatory expectations.

Key Takeaways

• Sterile manufacturing cubicles should be classified based on process risk and current regulatory requirements.
• Grade A critical zones with Grade B backgrounds provide protection during aseptic operations.
• HVAC systems, HEPA filtration, unidirectional airflow, and pressure cascades are fundamental engineering controls.
• Environmental monitoring, media fills, smoke studies, and lifecycle qualification demonstrate continued state of control.
• A science- and risk-based Contamination Control Strategy (CCS) is central to maintaining sterility assurance and regulatory compliance.

Next Chapter

Chapter 16 – Cubicle Classification for API Manufacturing, covering reactor rooms, solvent handling areas, filtration, centrifugation, drying, milling, packaging, containment strategies, HVAC zoning, explosion protection, pressure cascades, qualification, and GMP requirements for Active Pharmaceutical Ingredient (API) manufacturing facilities.
