16.1 Introduction

Active Pharmaceutical Ingredient (API) manufacturing differs significantly from finished dosage form manufacturing due to the complexity of chemical synthesis, biological processing, solvent handling, reaction chemistry, and containment requirements. API facilities often involve multiple unit operations such as reaction, crystallization, filtration, drying, milling, blending, and packaging, each with unique engineering and contamination control challenges.

Unlike sterile manufacturing, most API processes do not require classified cleanrooms. However, they demand rigorous control of:

• Cross-contamination
• Product mix-ups
• Occupational exposure
• Solvent vapors
• Dust generation
• Chemical hazards
• Environmental emissions
• Explosion risks

Cubicle classification in API facilities should be based on Quality Risk Management (ICH Q9) and aligned with:

• ICH Q7 – Good Manufacturing Practice for APIs
• WHO GMP
• US FDA 21 CFR Parts 210 & 211 (where applicable)
• EU GMP
• PIC/S GMP Guide
• ISPE Baseline Guides
• Applicable industrial safety standards

16.2 Objectives of API Cubicle Classification

The objectives are to:

• Protect API quality.
• Prevent cross-contamination.
• Protect personnel from hazardous exposure.
• Control solvent vapors and dust.
• Maintain process integrity.
• Facilitate cleaning and maintenance.
• Support safe handling of hazardous chemicals.
• Ensure GMP and occupational safety compliance.

16.3 Typical API Manufacturing Process

A simplified API manufacturing process is shown below.

Raw Materials
       │
       ▼
Dispensing
       │
       ▼
Reaction
       │
       ▼
Crystallization
       │
       ▼
Filtration
       │
       ▼
Drying
       │
       ▼
Milling
       │
       ▼
Blending
       │
       ▼
Packaging
       │
       ▼
Finished API Warehouse

Depending on the process, additional operations such as extraction, distillation, solvent recovery, chromatography, or micronization may be included.

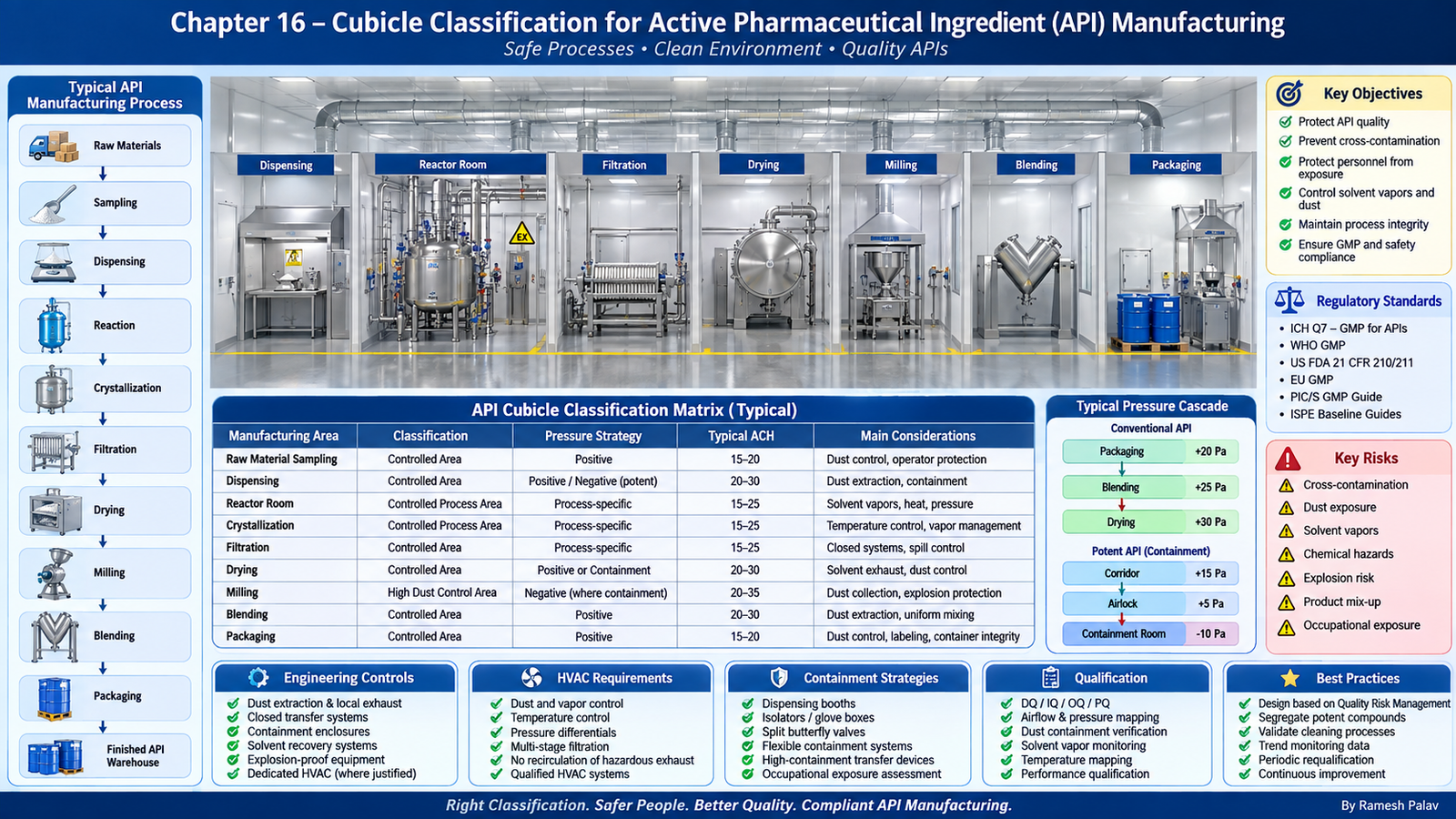

16.4 API Cubicle Classification Matrix

The following table provides typical engineering guidance. Actual classifications should be established through process development, hazard analysis, and Quality Risk Management.

16.5 Raw Material Sampling Cubicle

Purpose

Sampling incoming APIs, intermediates, solvents, and excipients for Quality Control testing.

Design Features

• Sampling booth
• Dust extraction
• HEPA-filtered supply air (where required)
• Stainless steel work surfaces
• Controlled access

Major Risks

• Dust exposure
• Sample contamination
• Operator exposure
• Product mix-up

16.6 Dispensing Cubicle

Purpose

Accurate weighing and dispensing of raw materials before processing.

Engineering Controls

• Dispensing booth
• Dust extraction
• Closed transfer containers
• Barcode verification
• Differential pressure monitoring

For potent APIs, additional containment measures such as isolators or downflow booths may be required.

16.7 Reactor Cubicle

The reactor room is the heart of chemical API manufacturing.

Typical Equipment

• Glass-lined reactors
• Stainless steel reactors
• Agitated vessels
• Pressure reactors

Major Risks

• Chemical reactions
• Solvent vapors
• Heat generation
• Pressure build-up
• Toxic gas release

Engineering Features

• Mechanical ventilation
• Local exhaust where required
• Process control instrumentation
• Emergency shutdown systems
• Spill containment
• Explosion-protected electrical equipment where flammable atmospheres may occur

16.8 Crystallization Cubicle

Purpose:

Formation of crystalline API.

Design Considerations

• Temperature control
• Agitation
• Controlled cooling
• Solvent vapor management
• Product containment

16.9 Filtration Cubicle

Purpose:

Separation of solids from liquids.

Equipment

• Nutsche Filter
• Filter Press
• Pressure Filter
• Vacuum Filter

Controls

• Closed transfer systems
• Solvent recovery where applicable
• Local exhaust ventilation
• Spill control

16.10 Drying Cubicle

Purpose:

Removal of residual solvents or moisture.

Equipment

• Vacuum Tray Dryer
• Rotary Vacuum Dryer
• Fluid Bed Dryer
• Conical Dryer

Design Requirements

• Temperature control
• Vacuum systems
• Solvent exhaust
• Dust containment

16.11 Milling Cubicle

Purpose:

Particle size reduction.

Risks

• Fine API dust
• Occupational exposure
• Explosion hazards (for combustible powders)
• Cross-contamination

Engineering Controls

• Closed milling systems
• Local exhaust ventilation
• Containment enclosures
• Dust collectors
• Explosion protection where applicable

16.12 Blending Cubicle

Purpose:

Homogeneous mixing of API batches or final blending before packaging.

Equipment

• Bin Blender
• Ribbon Blender
• Cone Blender

Controls

• Controlled environment
• Closed charging systems
• Dust extraction
• Environmental monitoring

16.13 Packaging Cubicle

Purpose:

Packaging APIs into drums, bags, or containers.

Risks

• Dust release
• Product contamination
• Labeling errors
• Operator exposure

Controls

• Dust extraction
• Controlled weighing
• Container integrity verification
• Label reconciliation
• Segregated packaging materials

16.14 Solvent Handling Areas

Many APIs are manufactured using organic solvents.

Common Solvents

• Methanol
• Ethanol
• Acetone
• Isopropyl Alcohol (IPA)
• Toluene
• Ethyl Acetate

Engineering Requirements

• Explosion-proof electrical systems (where required)
• Solvent vapor detection
• Mechanical ventilation
• Solvent recovery systems
• Earthing and bonding
• Fire protection systems

16.15 HVAC Requirements

API HVAC design should support:

• Dust control
• Solvent vapor removal
• Temperature control
• Pressure differentials
• Occupational exposure control

Typical features include:

• Multi-stage filtration
• Local exhaust ventilation
• Dedicated exhaust systems for hazardous processes
• Dedicated HVAC for highly potent APIs where justified
• No recirculation of hazardous exhaust air unless specifically treated and justified

16.16 Pressure Cascade

Pressure strategy depends on product and process risk.

Conventional API

Packaging
   +20 Pa
      │
Blending
   +25 Pa
      │
Drying
   +30 Pa

Potent API

Corridor
   +15 Pa
      │
Airlock
    +5 Pa
      │
Containment Room
   -10 Pa

Pressure values should be confirmed during design qualification and HVAC balancing.

16.17 Material Flow

Warehouse
     │
Sampling
     │
Dispensing
     │
Reaction
     │
Filtration
     │
Drying
     │
Packaging
     │
Finished Goods

Material flow should be unidirectional and should avoid crossing with waste or personnel routes.

16.18 Personnel Flow

Entry
   │
Change Room
   │
Personnel Airlock
   │
Manufacturing Area
   │
Exit

For potent APIs, personnel may require enhanced PPE, dedicated change rooms, and decontamination procedures.

16.19 Environmental Monitoring

Typical monitoring includes:

Microbiological monitoring is generally not required unless justified by the process or product.

16.20 Containment Strategies

For potent or hazardous APIs, engineering containment may include:

• Isolators
• Split butterfly valves
• Glove boxes
• Downflow booths
• Closed charging systems
• Flexible containment systems
• High-containment transfer devices

Containment performance should be verified using occupational exposure assessments.

16.21 Explosion Protection

Some API operations involve combustible dusts or flammable solvents.

Typical controls include:

• Hazardous area classification
• Explosion-relief panels
• Explosion suppression systems
• Inert gas blanketing
• Static electricity control
• Earthing and bonding
• ATEX or equivalent equipment where required by local regulations

16.22 Qualification Requirements

API manufacturing cubicles should undergo:

• Design Qualification (DQ)
• Installation Qualification (IQ)
• Operational Qualification (OQ)
• Performance Qualification (PQ)

Additional tests may include:

• Airflow verification
• Pressure mapping
• Dust containment verification
• Temperature mapping
• Solvent vapor monitoring
• Local exhaust performance testing

16.23 Common Inspection Observations

Inspectors frequently identify:

• Inadequate dust containment.
• Shared HVAC without documented risk assessment.
• Poor solvent handling practices.
• Incorrect pressure differentials.
• Inadequate cleaning validation.
• Poor segregation of potent compounds.
• Insufficient occupational exposure controls.
• Incomplete qualification documentation.

16.24 Best Practices

• Perform documented Quality Risk Management (QRM) before facility design.
• Use dedicated containment for potent APIs where required.
• Install closed transfer systems to minimize exposure.
• Integrate solvent recovery and explosion protection into process design.
• Validate HVAC performance and pressure cascades.
• Trend environmental and occupational exposure data.
• Periodically review containment strategies as products or processes change.
• Maintain comprehensive cleaning validation and preventive maintenance programs.

16.25 Case Study – Multi-Purpose API Manufacturing Facility

Product

Non-potent synthetic API

Manufacturing Sequence

Dispensing
     │
Reaction
     │
Crystallization
     │
Filtration
     │
Drying
     │
Milling
     │
Packaging

Facility Design

Benefits

• Improved operator safety.
• Effective dust control.
• Reduced solvent exposure.
• Enhanced GMP compliance.
• Efficient process flow and product quality.

16.26 API Cubicle Audit Checklist

Chapter Summary

API manufacturing facilities require a unique approach to cubicle classification because of the diverse chemical, physical, and occupational hazards involved. Unlike finished dosage manufacturing, API facilities emphasize containment, solvent management, dust control, and process safety. A risk-based design integrating HVAC systems, pressure strategies, containment technologies, environmental controls, and lifecycle qualification ensures product quality, personnel protection, environmental safety, and compliance with ICH Q7 and global GMP requirements.

Key Takeaways

• API cubicle classification should be driven by product, process, and occupational risk.
• Reactor rooms, filtration areas, drying rooms, milling operations, and packaging areas each require tailored engineering controls.
• Dust containment, solvent handling, and explosion protection are major design considerations.
• HVAC systems, pressure cascades, and containment technologies must be aligned with the specific hazards of the process.
• Lifecycle qualification, environmental monitoring, and periodic risk assessment help maintain a compliant and safe API manufacturing environment.

Next Chapter

Chapter 17 – HVAC Zoning in Pharmaceutical Manufacturing, covering Air Handling Unit (AHU) zoning, return air zoning, dedicated vs. shared HVAC systems, recirculation limitations, pressure zoning, contamination control strategies, cleanroom zoning, energy optimization, qualification, and GMP best practices for pharmaceutical manufacturing facilities.
