Maintaining Pharmaceutical Equipment in a Validated State Throughout Its Lifecycle

Series: Part 11 of 20

Introduction

Successfully completing Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) does not guarantee that pharmaceutical equipment will remain qualified throughout its operational life. Equipment performance can gradually deteriorate due to wear, aging, environmental conditions, software updates, mechanical failures, and human intervention.

To ensure continued compliance with Good Manufacturing Practices (GMP) and maintain consistent product quality, pharmaceutical manufacturers must establish robust systems for:

Scientifically justified acceptance criteria
Calibration management
Preventive maintenance (PM)
Equipment reliability monitoring
Out-of-tolerance investigation
Spare parts management
Continuous performance monitoring

International regulatory authorities—including the US FDA, EMA, MHRA, WHO, PIC/S, and industry guidance from ISPE, ASTM, ICH Q9(R1), and ICH Q10—expect manufacturers to maintain equipment in a validated state throughout its lifecycle.

This article explores how acceptance criteria are established, how calibration programs ensure measurement accuracy, and how preventive maintenance contributes to operational excellence and regulatory compliance.

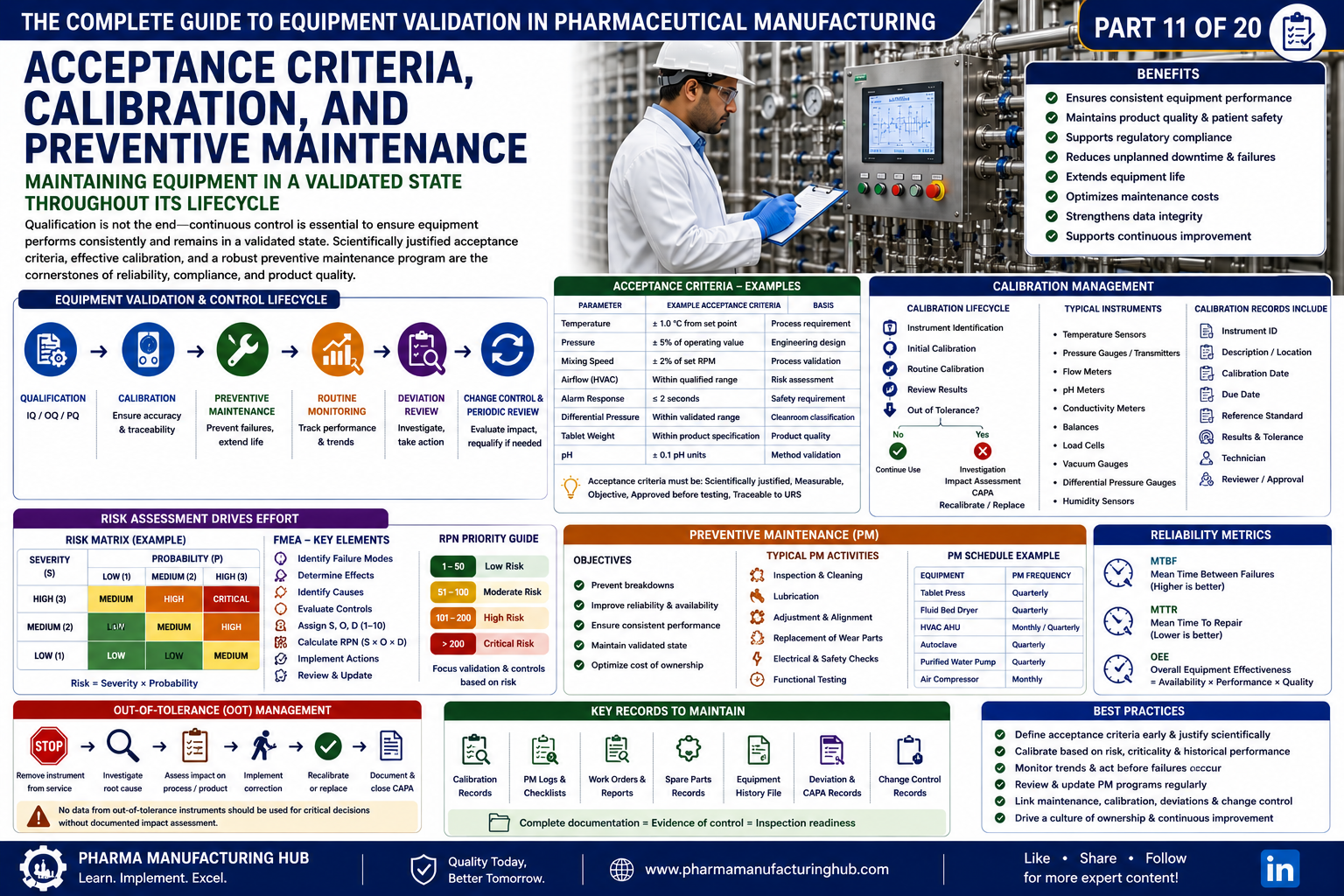

Maintaining the Validated State

Validation is not a one-time event. It is an ongoing lifecycle activity.

Qualification
      │
      ▼
Calibration
      │
      ▼
Preventive Maintenance
      │
      ▼
Routine Monitoring
      │
      ▼
Deviation Review
      │
      ▼
Change Control
      │
      ▼
Periodic Review
      │
      ▼
Requalification (If Required)

A well-designed lifecycle program minimizes failures and maintains confidence in equipment performance.

Acceptance Criteria

What are Acceptance Criteria?

Acceptance criteria are predefined, objective, and measurable requirements that equipment must satisfy to demonstrate compliance during qualification, calibration, maintenance, or routine operation.

Acceptance criteria answer the question:

“How do we know the equipment is performing acceptably?”

Characteristics of Good Acceptance Criteria

Acceptance criteria should be:

Scientifically justified.
Based on risk assessment.
Objective and measurable.
Practical to verify.
Approved before testing.
Traceable to the URS and design specifications.

Poorly defined acceptance criteria can lead to inconsistent qualification decisions and regulatory concerns.

Sources for Acceptance Criteria

Acceptance criteria may be derived from:

User Requirement Specification (URS)
Equipment design specifications
Vendor recommendations
Engineering calculations
Product development studies
Regulatory requirements
Pharmacopeial standards
Historical process capability
Risk assessment outcomes

Examples of Acceptance Criteria

Parameter	Example Acceptance Criteria
Temperature	±1°C from set point
Pressure	±5% of operating value
Mixing Speed	±2% of programmed RPM
Tablet Weight	Within approved product specification
Alarm Response	≤ 2 seconds
Differential Pressure	Within validated operating range
Flow Rate	Within qualified process limits

Acceptance criteria should never be arbitrary—they must have a documented scientific basis.

Developing Scientific Acceptance Criteria

A structured approach includes:

Identify the critical parameter.
Determine its impact on product quality.
Review engineering and process data.
Evaluate historical performance.
Consider regulatory expectations.
Assess measurement uncertainty.
Document the rationale.
Obtain Quality approval.

Calibration

What is Calibration?

Calibration is the comparison of an instrument’s measurement against a traceable reference standard to verify its accuracy and reliability.

Calibration ensures that measurements used during manufacturing, qualification, and quality control are correct.

Why Calibration is Important

Calibration supports:

Accurate process control.
Product quality.
Batch consistency.
Regulatory compliance.
Reliable qualification data.
Patient safety.
Data integrity.

An uncalibrated instrument can invalidate qualification results and compromise manufacturing decisions.

Instruments Requiring Calibration

Typical pharmaceutical instruments include:

Temperature sensors
Pressure transmitters
Load cells
Flow meters
Vacuum gauges
pH meters
Conductivity meters
Balance scales
Differential pressure gauges
RPM indicators
Humidity sensors
Level transmitters

Calibration Lifecycle

Instrument Installation
         │
         ▼
Initial Calibration
         │
         ▼
Routine Calibration
         │
         ▼
Review Results
         │
         ▼
Out-of-Tolerance?
      │         │
     No        Yes
      │         │
Continue     Investigation
              │
              ▼
Impact Assessment
              │
              ▼
CAPA

Calibration Frequency

Calibration intervals should be based on:

Equipment criticality.
Historical performance.
Manufacturer recommendations.
Frequency of use.
Environmental conditions.
Regulatory expectations.
Risk assessment.

Example

Instrument	Typical Frequency
Temperature Sensor	6–12 months
Pressure Gauge	6–12 months
Balance	Daily verification, annual calibration
pH Meter	Before use / routine calibration
Flow Meter	Annually (or risk-based)

Organizations should justify calibration frequencies based on documented evidence rather than fixed intervals alone.

Traceability

Calibration standards should be traceable to recognized national or international standards (e.g., NIST or equivalent).

Traceability ensures:

Measurement consistency.
International comparability.
Regulatory acceptance.
Confidence in qualification data.

Out-of-Tolerance (OOT) Management

If an instrument fails calibration:

Remove it from service.
Label it appropriately.
Investigate the cause.
Assess the impact on previously manufactured batches or qualification activities.
Perform recalibration or replacement.
Implement CAPA.
Document the investigation.

OOT investigations should evaluate whether previously collected data remain valid.

Calibration Records

A calibration record should include:

Instrument ID
Description
Serial Number
Calibration Date
Due Date
Reference Standard
Results
Tolerance
Technician
Reviewer
Approval

Preventive Maintenance (PM)

What is Preventive Maintenance?

Preventive Maintenance is a planned program of inspection, servicing, replacement, lubrication, cleaning, and adjustment performed before equipment failure occurs.

Its purpose is to maintain equipment reliability and reduce unexpected downtime.

Objectives of Preventive Maintenance

Preventive Maintenance aims to:

Prevent equipment failures.
Extend equipment life.
Improve reliability.
Reduce breakdowns.
Maintain the validated state.
Improve Overall Equipment Effectiveness (OEE).
Support GMP compliance.

Maintenance Strategy

Maintenance planning should consider:

Equipment criticality.
Manufacturer recommendations.
Historical failures.
Mean Time Between Failures (MTBF).
Mean Time to Repair (MTTR).
Spare parts availability.
Production schedules.

Preventive Maintenance Activities

Typical PM activities include:

Inspection
Cleaning
Lubrication
Tightening of fasteners
Belt replacement
Bearing replacement
Filter replacement
Seal replacement
Electrical inspection
Software backup
Sensor verification
Functional testing

Maintenance Schedule Example

Equipment	PM Frequency
Tablet Press	Quarterly
Fluid Bed Dryer	Quarterly
HVAC AHU	Monthly / Quarterly
Autoclave	Quarterly
Purified Water Pump	Quarterly
Air Compressor	Monthly
Coating Machine	Quarterly

The schedule should be reviewed periodically and adjusted based on reliability data.

Critical Spare Parts Management

Critical spare parts may include:

Bearings
Gaskets
O-rings
Motors
PLC modules
Sensors
Pressure transmitters
Solenoid valves
Belts
Filters

An inventory strategy should balance availability with shelf-life and storage conditions.

Reliability Engineering

Reliability metrics help optimize maintenance programs.

Mean Time Between Failures (MTBF)

Measures average operating time between failures.

Higher MTBF indicates improved equipment reliability.

Mean Time to Repair (MTTR)

Measures average time required to restore equipment after failure.

Lower MTTR contributes to improved equipment availability.

Overall Equipment Effectiveness (OEE)

OEE combines:

Availability
Performance
Quality

Monitoring OEE helps identify opportunities for improvement.

Equipment Health Monitoring

Modern pharmaceutical facilities increasingly use condition-based monitoring.

Examples include:

Vibration analysis
Thermal imaging
Motor current monitoring
Bearing condition monitoring
Oil analysis
Acoustic monitoring
Predictive analytics

These technologies support proactive maintenance and reduce unexpected failures.

Integration with Change Control

Preventive maintenance activities involving:

Component replacement
Software updates
Motor changes
Sensor replacement
PLC modifications

should be evaluated through change control to determine whether requalification or additional testing is required.

Documentation Requirements

Typical maintenance documentation includes:

PM Schedule
Work Orders
Completed Checklists
Spare Parts Records
Lubrication Records
Breakdown Reports
Root Cause Analysis
CAPA
Equipment History File

Complete records demonstrate ongoing control of equipment performance.

Inspector’s Perspective

Regulatory inspectors frequently review maintenance and calibration records to determine whether equipment remains in a validated state.

Inspectors typically verify:

Calibration compliance.
Overdue calibrations.
Preventive maintenance completion.
Out-of-tolerance investigations.
Equipment history.
Spare parts traceability.
Trend analysis.
Effectiveness of CAPA.

A proactive maintenance and calibration program reflects a mature Pharmaceutical Quality System (PQS).

Expert Tips

Expert Tip 1: Base calibration frequencies on historical performance and risk assessment rather than applying identical intervals to every instrument.

Expert Tip 2: Review preventive maintenance effectiveness annually using reliability metrics such as MTBF, MTTR, and OEE. Adjust schedules where recurring failures are identified.

Expert Tip 3: Link maintenance records, calibration history, deviations, CAPA, and change controls within the equipment history file. This provides complete lifecycle traceability and simplifies regulatory inspections.

Common Pitfalls

Avoid these common issues:

Using arbitrary acceptance criteria without documented justification.
Overdue calibration of critical instruments.
Incomplete maintenance records.
Failure to investigate out-of-tolerance calibration results.
Lack of trend analysis for recurring failures.
Inadequate spare parts management.
Ignoring the validation impact of maintenance activities.
Delayed closure of maintenance-related CAPA.

Frequently Asked Questions (FAQs)

1. Why are acceptance criteria important?

They provide objective evidence that equipment performs within predefined limits and supports consistent qualification decisions.

2. How are calibration intervals established?

Calibration intervals should be based on equipment criticality, historical performance, manufacturer recommendations, and documented risk assessments.

3. What should be done if an instrument is found out of tolerance?

The instrument should be removed from service, investigated, impact-assessed, recalibrated or replaced, and managed through CAPA where appropriate.

4. What is the purpose of preventive maintenance?

Preventive maintenance minimizes unexpected failures, improves reliability, extends equipment life, and helps maintain the validated state.

5. What are MTBF and MTTR?

MTBF measures the average operating time between failures, while MTTR measures the average time required to repair equipment after failure.

6. Does preventive maintenance require change control?

Routine maintenance generally does not, but activities involving significant modifications or replacement of critical components should undergo change control and validation impact assessment.

7. Why is traceability important in calibration?

Traceability ensures measurements are linked to recognized standards, providing confidence in data accuracy and regulatory acceptance.

8. How do calibration and maintenance support GMP?

Together, they ensure equipment continues to operate accurately, reliably, and consistently, protecting product quality and patient safety.

Key Takeaways

Scientifically justified acceptance criteria form the basis for objective qualification and routine equipment evaluation.
A robust calibration program ensures measurement accuracy, traceability, and confidence in qualification and manufacturing data.
Preventive maintenance reduces equipment failures, improves reliability, and supports the validated state throughout the equipment lifecycle.
Integrating calibration, maintenance, reliability monitoring, change control, and documentation into a comprehensive lifecycle program strengthens GMP compliance and inspection readiness.

Coming Up in Part 12

Requalification, Change Control, and Lifecycle Management: Managing Equipment Changes While Maintaining GMP Compliance

In Part 12, we will explore when and how equipment requalification is required, including periodic requalification, post-maintenance qualification, relocation, software upgrades, engineering changes, PLC/HMI modifications, sensor replacement, validation impact assessment, change control workflows, documentation requirements, and lifecycle management best practices used by leading pharmaceutical manufacturers to maintain equipment in a continuous state of validation.
