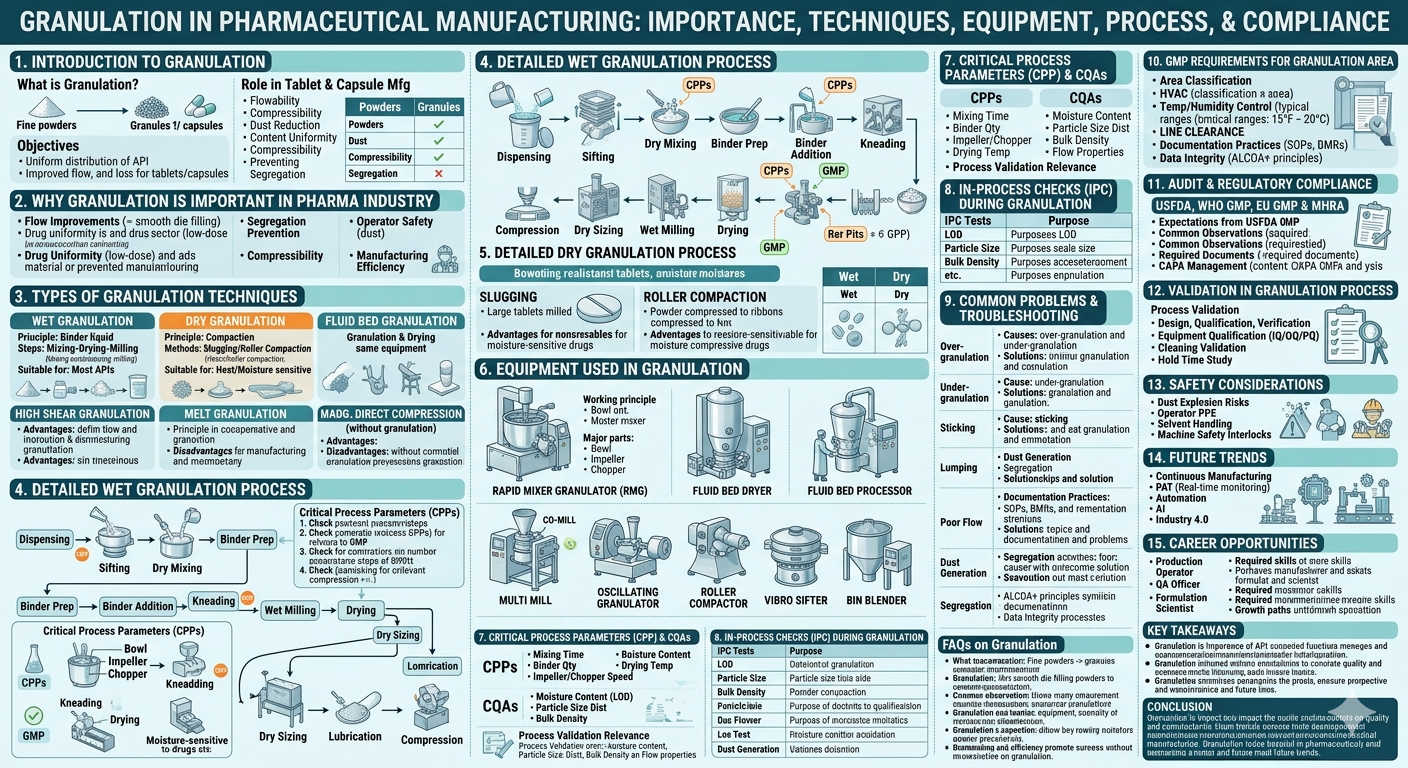

Granulation is one of the most critical unit operations in solid oral dosage manufacturing. It plays a major role in improving powder properties, ensuring uniform drug distribution, enhancing compressibility, and achieving consistent tablet and capsule quality. In modern pharmaceutical manufacturing, granulation is not only a production activity but also a key GMP and regulatory compliance area.

1. Introduction to Granulation in Pharmaceuticals

What is Granulation in Pharmaceutical Manufacturing?

Granulation is the process of converting fine powders into larger, free-flowing particles called granules. These granules are used in the manufacturing of tablets and capsules.

The pharmaceutical granulation process improves powder handling characteristics and ensures uniformity during manufacturing.

Role of Granulation in Tablet and Capsule Manufacturing

Granulation helps in:

• Improving flowability
• Enhancing compressibility
• Reducing dust generation
• Preventing segregation
• Achieving content uniformity
• Improving dissolution characteristics

Without proper granulation, tablet manufacturing becomes difficult due to poor powder flow and inconsistent weight variation.

Difference Between Powders and Granules

Objectives of Granulation Process

Major objectives include:

• Uniform distribution of API
• Improved flow properties
• Enhanced compressibility
• Dust minimization
• Better appearance
• Reduced segregation
• Improved manufacturing efficiency

2. Why Granulation is Important in Pharma Industry

Improvement of Flow Properties

Granules flow better than powders due to increased particle size and reduced inter-particle friction.

Benefits:

• Smooth die filling
• Uniform tablet weight
• Reduced machine stoppages

Uniformity of Drug Distribution

Granulation ensures even distribution of API throughout the batch, especially for low-dose formulations.

Prevention of Segregation

Powder segregation occurs due to particle size and density differences. Granules reduce segregation risk significantly.

Enhancement of Compressibility

Granules compress more effectively during tablet compression, resulting in:

• Better hardness
• Reduced friability
• Uniform thickness

Dust Reduction & Operator Safety

Fine powders generate dust which can:

• Cause cross-contamination
• Create explosion hazards
• Affect operator health

Granulation minimizes airborne particles.

Better Tablet Hardness and Dissolution

Properly prepared granules improve:

• Tablet integrity
• Dissolution profile
• Drug release consistency

Improved Manufacturing Efficiency

Granules improve machine performance by reducing:

• Weight variation
• Compression issues
• Downtime

3. Types of Granulation Techniques

Wet Granulation

Principle

Powders are agglomerated using a liquid binder solution.

Process Steps

1. Mixing
2. Binder addition
3. Wet massing
4. Drying
5. Milling
6. Blending

Advantages

• Excellent content uniformity
• Good compressibility
• Suitable for most APIs

Disadvantages

• Time-consuming
• Requires drying
• Not suitable for moisture-sensitive drugs

Applications

• Antibiotics
• Analgesics
• Vitamin tablets

Dry Granulation

Principle

Powders are compacted without liquid addition.

Methods

• Slugging
• Roller compaction

Advantages

• Suitable for heat-sensitive drugs
• No drying required
• Faster process

Disadvantages

• Poorer flow compared to wet granulation
• Higher fines generation

Direct Compression

Principle

Powders are compressed directly into tablets without granulation.

Advantages

• Cost-effective
• Simple process
• Reduced processing steps

Disadvantages

• Requires excellent flow materials
• Limited formulation flexibility

Fluid Bed Granulation

Granulation and drying occur in the same equipment using fluidization technology.

Advantages

• Faster drying
• Uniform granules
• Reduced processing time

High Shear Granulation

Uses high-speed impeller and chopper for rapid granule formation.

Advantages

• Fast process
• Dense granules
• Uniform particle size

Melt Granulation

Uses molten binder instead of solvent.

Benefits

• No drying step
• Suitable for moisture-sensitive products

Steam Granulation

Steam is used as granulating fluid.

Advantages

• Uniform heat distribution
• Faster granulation

Moisture Activated Dry Granulation (MADG)

Minimal water is added followed by moisture absorption.

Benefits

• Reduced drying requirement
• Energy efficient

4. Detailed Wet Granulation Process

Step 1: Dispensing

Raw materials are dispensed according to Batch Manufacturing Record (BMR).

GMP Checkpoints

• Material status verification
• Weighing balance calibration
• Line clearance

Step 2: Sifting

Materials are passed through sieves to remove lumps and foreign particles.

Step 3: Dry Mixing

API and excipients are mixed uniformly.

Critical Parameters

• Mixing time
• Impeller speed

Step 4: Binder Preparation

Binder solution is prepared using purified water or solvents.

Examples

• PVP K30
• Starch paste
• HPMC solution

Step 5: Binder Addition

Binder is slowly added into powder blend.

Critical Considerations

• Spray rate
• Binder quantity
• Mixing speed

Step 6: Kneading

Wet mass is kneaded to achieve uniform consistency.

Step 7: Wet Milling

Wet mass is passed through mill for uniform granule size.

Step 8: Drying

Granules are dried in Fluid Bed Dryer (FBD).

Typical LOD Target

1.5%–3.0%

Step 9: Dry Sizing

Dried granules are milled to achieve desired particle size distribution.

Step 10: Lubrication & Blending

Lubricants like magnesium stearate are added.

Step 11: Compression

Granules are compressed into tablets.

5. Detailed Dry Granulation Process

Slugging

Large tablets (slugs) are prepared and milled.

Roller Compaction

Powder is compacted between rollers into ribbons.

Advantages

• Continuous process
• Better density control

Advantages for Moisture-Sensitive Drugs

Dry granulation is ideal for:

• Heat-sensitive APIs
• Moisture-sensitive products
• Hygroscopic formulations

Wet vs Dry Granulation

6. Equipment Used in Granulation

Rapid Mixer Granulator (RMG)

Working Principle

Mixing and granulation occur using impeller and chopper.

Major Parts

• Bowl
• Impeller
• Chopper
• Lid
• Discharge port

Operating Parameters

• Impeller speed
• Chopper speed
• Mixing time

GMP Requirements

• Equipment cleaning
• Status labeling
• Preventive maintenance

Safety Precautions

• Interlocks
• Earthing
• Emergency stop

Fluid Bed Dryer (FBD)

Working Principle

Hot air fluidizes granules for drying.

Critical Parameters

• Inlet temperature
• Exhaust temperature
• Airflow

Fluid Bed Processor (FBP)

Performs:

• Granulation
• Drying
• Coating

Multi Mill

Used for wet and dry milling.

Co-mill

Provides uniform particle size with minimal heat generation.

Oscillating Granulator

Converts wet mass into granules using oscillating rotor.

Roller Compactor

Used in dry granulation for ribbon formation.

Vibro Sifter

Separates particles based on mesh size.

Octagonal Blender

Used for lubrication blending.

Bin Blender

Provides closed-system blending with minimal contamination.

7. Critical Process Parameters (CPP) & Critical Quality Attributes (CQA)

Critical Process Parameters

Mixing Time

Overmixing may affect dissolution.

Binder Quantity

Excess binder causes over-granulation.

Impeller Speed

Affects granule density.

Chopper Speed

Controls granule size.

Drying Temperature

High temperature may degrade API.

Critical Quality Attributes

Granule Moisture Content

Impacts compressibility and stability.

Particle Size Distribution

Affects dissolution and flow.

Bulk Density

Important for compression uniformity.

Flow Properties

Critical for die filling.

Process Validation Relevance

CPPs and CQAs are monitored during:

• Process validation
• Continued process verification
• Risk assessment

8. In-Process Checks During Granulation

Documentation Requirements

All IPC results must be:

• Recorded in BMR
• Reviewed by QA
• Traceable
• Signed and dated

9. Common Problems in Granulation & Troubleshooting

Industrial Example

During wet granulation of paracetamol tablets, excessive binder addition caused large hard granules leading to poor dissolution. Optimization of binder spray rate solved the issue.

10. GMP Requirements for Granulation Area

Area Classification

Granulation areas should have:

• Controlled access
• Cleanroom classification
• Dust control systems

HVAC Requirements

HVAC maintains:

• Temperature
• Humidity
• Differential pressure

Temperature & Humidity Control

Typical conditions:

• Temperature: 22–27°C
• RH: 40–60%

Line Clearance

QA ensures:

• Previous product removal
• Cleaning verification
• Correct labels

Documentation Practices

Required documents:

• SOPs
• BMRs
• Cleaning records
• Calibration records

Data Integrity

Follow ALCOA+ principles:

• Attributable
• Legible
• Contemporaneous
• Original
• Accurate

11. Audit & Regulatory Compliance in Granulation

USFDA Expectations

Focus areas:

• Process control
• Data integrity
• Validation
• Documentation

WHO GMP Requirements

Emphasizes:

• Cleanliness
• Traceability
• SOP compliance

EU GMP & MHRA Expectations

Strong focus on:

• Risk management
• Cross-contamination prevention
• Quality systems

Common Audit Observations

• Incomplete BMR entries
• Unclean equipment
• Missing calibration labels
• Poor deviation handling
• Improper logbook maintenance

Required Audit Documents

Batch Manufacturing Record (BMR)

Must include:

• Material details
• Process parameters
• IPC results

Equipment Logbooks

Should record:

• Usage
• Cleaning
• Maintenance

CAPA Management

CAPA system should address:

• Root cause
• Corrective action
• Preventive action
• Effectiveness verification

12. Validation in Granulation Process

Process Validation

Ensures reproducibility of process.

Stages

1. Process design
2. Process qualification
3. Continued verification

Equipment Qualification

Cleaning Validation

Confirms removal of:

• Product residue
• Cleaning agents
• Microbial contamination

Hold Time Study

Determines acceptable storage duration for:

• Wet granules
• Dried granules
• Lubricated blend

13. Safety Considerations in Granulation

Dust Explosion Risks

Powder accumulation can create explosion hazards.

Preventive Measures

• Dust extraction systems
• Earthing
• Flame-proof equipment

Operator PPE

Operators should wear:

• Gloves
• Masks
• Goggles
• Coveralls

Solvent Handling

Organic solvents require:

• Ventilation
• Flame-proof systems
• Solvent recovery systems

Machine Safety Interlocks

Interlocks prevent operation during unsafe conditions.

14. Future Trends in Pharmaceutical Granulation

Continuous Manufacturing

Provides:

• Real-time monitoring
• Reduced batch variability
• Higher efficiency

PAT (Process Analytical Technology)

PAT tools monitor:

• Moisture
• Particle size
• Granule growth

in real-time.

Automation

Automated systems improve:

• Data accuracy
• Process consistency
• Compliance

AI in Pharma Manufacturing

AI helps in:

• Predictive maintenance
• Process optimization
• Deviation prediction

Industry 4.0

Smart manufacturing integrates:

• IoT
• Data analytics
• Digital batch records

15. Career Opportunities Related to Granulation

Required Skills

• GMP knowledge
• Equipment handling
• Documentation
• Problem-solving
• Process understanding

Career Growth

Freshers can progress from:

• Operator → Officer → Executive → Manager → Plant Head

FAQs on Granulation in Pharma

1. What is granulation in pharma?

Granulation is the process of converting powders into granules for tablet and capsule manufacturing.

2. Why is wet granulation preferred?

It provides excellent compressibility and content uniformity.

3. What is LOD?

LOD means Loss on Drying and measures moisture content.

4. What is RMG in pharma?

Rapid Mixer Granulator used for wet granulation.

5. Why is FBD used?

Fluid Bed Dryer removes moisture from granules.

6. What causes over-granulation?

Excess binder or excessive kneading.

7. What are CQAs?

Critical Quality Attributes affecting product quality.

8. What is roller compaction?

Dry granulation method using pressure rollers.

9. Why is GMP important in granulation?

To ensure quality, safety, and regulatory compliance.

10. What are common IPCs in granulation?

LOD, particle size, density, and blend uniformity.

11. What is segregation?

Separation of particles due to size or density differences.

12. What is direct compression?

Tablet manufacturing without granulation.

13. What are validation batches?

Batches manufactured to verify process consistency.

14. What is MADG?

Moisture Activated Dry Granulation.

15. Which granulation method is best?

Depends on API properties and formulation requirements.

Conclusion

Granulation in pharma is a critical pharmaceutical manufacturing process that directly impacts tablet quality, process efficiency, GMP compliance, and regulatory acceptance. Proper understanding of wet granulation, dry granulation, granulation equipment, CPPs, CQAs, validation, and audit readiness is essential for every pharmaceutical professional.

Modern pharmaceutical industries are moving toward automated, PAT-enabled, and continuous granulation systems to improve quality and operational excellence. Professionals with strong expertise in granulation technology and GMP compliance have excellent career opportunities in pharmaceutical manufacturing.

Key Takeaways

• Granulation improves flow, compressibility, and uniformity
• Wet and dry granulation are the most widely used methods
• RMG and Fluid Bed Dryer are core granulation equipment
• CPPs and CQAs are essential for process validation
• GMP compliance and audit readiness are critical
• PAT and automation are shaping future pharmaceutical manufacturing
• Granulation expertise offers strong pharma career growth opportunities
